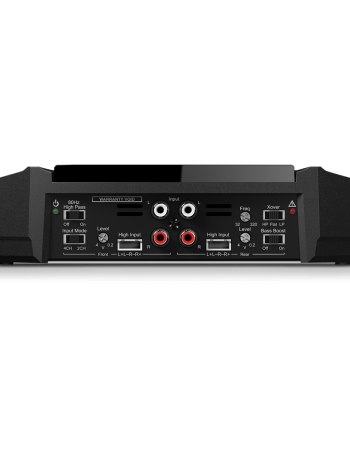

Equipped with both low-level and high-level inputs
The GX-A604 is equipped with both low-level and high-level inputs, allowing conncetion to virtually any factory or aftermarket head unit. Low-level input is made via standard RCA connectors and high-level inputs made via a supplied Molex connector and harness.
Electronic crossover
The 12dB per octave electronic crossover is fixed at 80Hz and can be selected either high-pass or low-pass. This allows the GX-A602 can be used as a an amplifeir to drive full-range speakers or as a subwoofer amplifier.
Bass Boost circuit
The GX-A602 also has an switchable bass boost circuit on the rear channels that adds a fixed at 45Hz and will provide+12dB of gain.
| Audio Specifications | |
| 2-Ohm Power Output | 85 Watts RMS x 4 channels |
| 4-Ohm Power Output | 60 Watts RMS x 4 channels |
| Bridged Power Output | 170W x 2 into 4 ohms |
| Frequency Response | 20Hz-20kHz |
| Input Sensitivity | 20mV-20V |
| Signal-to-Noise Ratio | 93dB |
| THD + N | ;less than 1% |
| Total Peak Power Output | 435W |
| Variable Bass Boost | 0 to + 12dB @45Hz |
| General Specifications | |
| Amplifier Power (RMS) | 4 ohm... 60W x 4, <1% THD+N |
| Frequency Response | 20Hz – 20kHz |
| Input Sensitivity | 200mV-20V |
| MSRP U.S. | $179.95 each |
| Number of Channels | 4 channels |
| Power Handling(Peak) | 435W |
| Signal-to-Noise Ratio | 93dB |
| Total Harmonic Distortion | <1% |
| Variable Bass Boost | 0 to + 12dB @ 45Hz |
