High - Energy JBL Pro Sound Takes To The Road

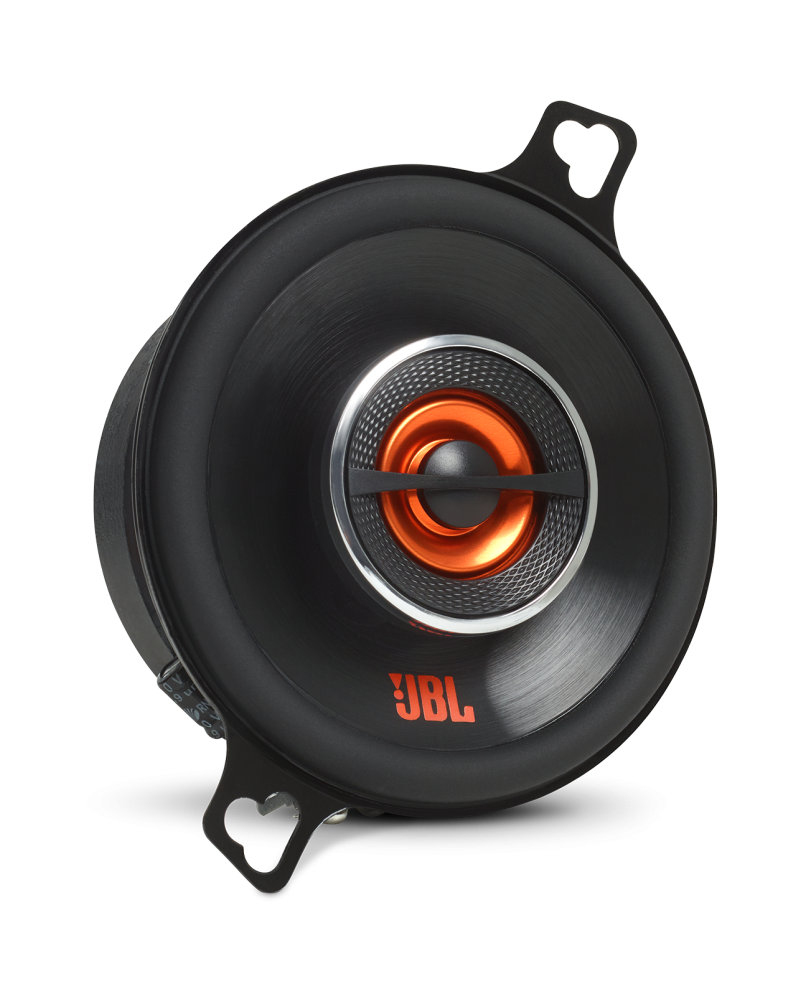

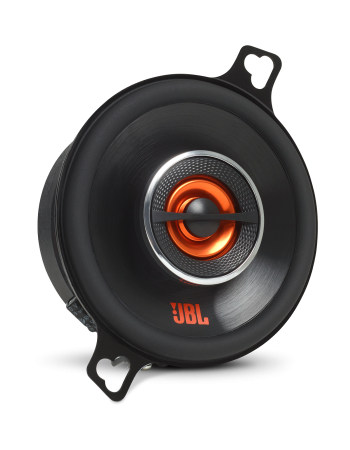

Designed to fit into 3" factory locations without vehicle modification, the GX328 delivers high-energy JBL pro sound for in-vehicle applications. Leveraging our patented Plus One™ woofer cone with three-ohm voice coil and edge-driven soft-dome tweeter mounted into our all new proprietary tweeter deflector, all individually voiced to deliver authentic JBL pro sound for your next roadtrip. To ensure that you get a great performance even with the windows down, the three-ohm voice coil extracts more power from the amplifier, delivering high output and deeper bass.
Plus One™ Woofer Cones
HARMAN’s patented (US patent #7,548,631) Plus One™ polypropylene cones provide more overall speaker-cone area than other cones in its class. The result is higher sensitivity, increased low-frequency output and greater overall perormance.
Edge-Driven Soft Dome Tweeter
Edge-driven dome tweeters provide better power handling than balanced-dome tweeters by providing more heat-dissipating surface area in the voice coil. We use larger tweeter diaphragms because we always know where the listeners will sit in a car. It’s not like in a house, where many listening positions must be accommodated.
Three-ohm DCR Voice Coils
Low-impedance, three-ohm voice coils compensate for the undergauged speaker wiring found in many of today's cars, and make the most of every watt your amplifier or head unit can deliver.
Frequency Response Up To 21kHz
Hear what you’ve been missing – the JBL GX Series offers a frequency response that delivers the full-range response associated with exceptional sound
| General Specifications | |
| Frequency Response | 90Hz – 21kHz |
| Impedance | 2.3 ohms |
| Power Handling | 25W RMS, 75W Peak |
| Sensitivity (@ 2.83V/m) | 89dB |
